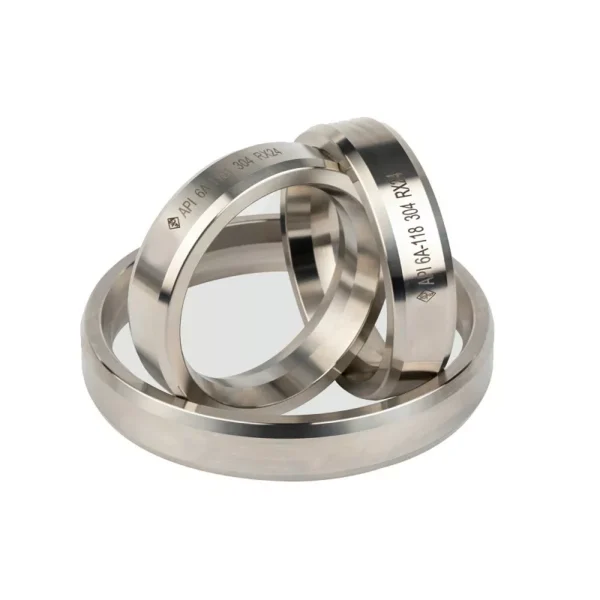

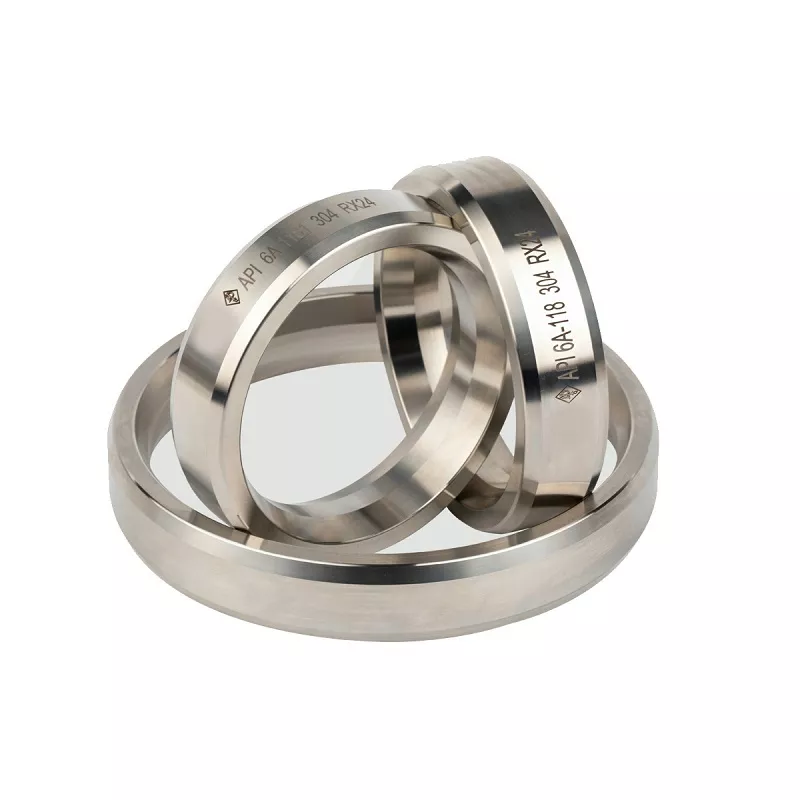

ASME B16.20 Type RX Ring Gasket – Pressure-Activated Sealing for API Flanges

Description

ASME B16.20 Type RX Ring Gaskets are pressure-energized, metallic gaskets designed for use in high-pressure and high-temperature environments, especially in API 6A and ASME B16.5 flanges. The RX type offers improved sealing performance over standard R-type gaskets by utilizing internal pressure to enhance the seal as system pressure increases.

Manufactured from carbon steel or stainless steel, these gaskets are available in a wide range of sizes and materials compatible with various flange standards. The RX design includes a pressure-activation feature and a self-seating capability, making it ideal for subsea, offshore, refinery, and petrochemical applications.

Available Finishes:

• Plain

• Black Oxide

• Zinc Electroplating

• Hot Dip Galvanizing

• Copper Plating

• Nickel Plating

• Zinc Impregnation

• Custom coatings upon request

Specifications:

• Standard: ASME B16.20 / API 6A

• Type: RX (Pressure-Activated Ring Gasket)

• Material: Carbon Steel, Stainless Steel (other alloys available on request)

• Seal Type: Metal-to-metal

• Shape: Octagonal cross-section with pressure-activated geometry

• OEM Capability: Yes, based on customer drawings or samples

• Samples: Free samples available

Packaging Options:

• Wooden Boxes

• Pallets

• Cartons

• Plastic Bags

• Nylon Bags

Applications:
✔ Oil & Gas pipelines
✔ Refineries and chemical plants
✔ Offshore drilling platforms
✔ Subsea flanges
✔ High-pressure valve and pump systems
